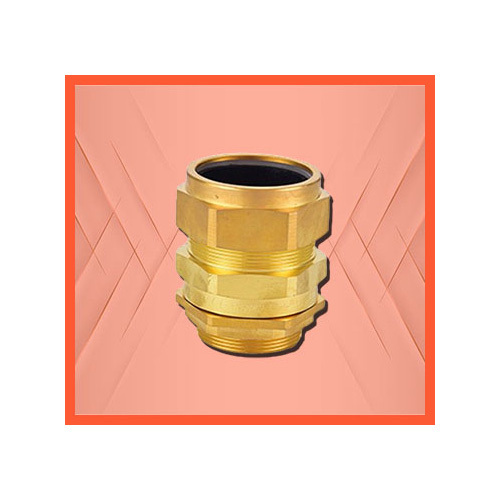

Cable Gland

• Application
• Other, Industrial, Electrical panels, Instrumentation, Control panels, Outdoor & indoor cable management

• Armored Material
• Compatible with armoured and unarmoured cables

• Cable Type
• Suitable for armoured/unarmoured, single/multi-core cables

• Color
• Brass (natural gold/yellow finish)

• Connector Color
• Brass natural finish

• Diameter
• Gland thread sizes as per M/PG series or custom (6mm to 63mm)

• Dimension (L*W*H)
• Varies according to gland size (M16 to M63, PG7 to PG48 or as specified)

• Features
• High corrosion resistance, Durable construction, Water and dust proof, Flame retardant, Vibration proof sealing, Easy installation and removal

• Install Type
• Locknut or screw type installation

• Insulation
• As per selected washer/insulation ring

• Insulation Material
• Other, Polyamide, PVC or as per specification

• Jacket Material
• Other, NA (as the gland itself does not have an outer jacket)

• Length
• Customizable as per requirement

• Locking Type
• Threaded with locking nut

• Material
• High-grade Brass IS 319 / BS 249 / BS 2874 or as specified

• Operating Temperature
• -20C to +80C

• Product Type
• Cable Gland

• Rated Temperature
• -20C to +80C

• Shield Material
• NA (component is for cable entry, not shielded)

• Size
• M16, M20, M25, M32, PG7, PG9, PG11, PG13.5, PG16, PG21, PG29, PG36, PG42, PG48 or Custom Sizes

• Storage Temperature
• -40C to +85C

• Tensile Strength
• High mechanical strength, withstands cable pull force

• Usage & Applications
• Suitable for securing and terminating cables in electrical installations, outdoor entry, glands for power/control/instrumentation cables

• Voltage
• Other, Up to 1000V

• Weight
• Depends on size and type, usually 20g to 200g

• Application
• Other, Securing and Sealing Armoured and Unarmoured Cables to Junction Boxes and Control Panels

• Armored Material
• Steel / Aluminum (Cable dependent)

• Cable Type
• Armoured and Unarmoured Cables

• Color
• Silver / Metallic Finish

• Connector Color
• Silver / Nickel Plated

• Diameter
• 16mm to 90mm

• Dimension (L*W*H)
• Varies as per size (available from 16mm to 90mm OD)

• Features
• Waterproof, Dust Proof, Flame Proof, Weatherproof, Vibration Resistant, Durable Construction, Double Compression Seal, Provides Earthing

• Install Type
• Outdoor / Indoor Mounting

• Insulation Material
• Other, NA (Not applicable for cable gland)

• Jacket Material
• Other, NA (Not applicable for cable gland)

• Length
• Customizable as per cable size

• Locking Type
• Threaded, Double Compression

• Material
• Brass (Nickel Plated or Natural Finish), Stainless Steel, Aluminum

• Operating Temperature
• -20C to +80C

• Product Type
• Double Compression Cable Gland

• Rated Temperature
• -20C to +80C

• Size
• 16mm, 20mm, 25mm, 32mm, 40mm, 50mm, 63mm, 75mm, 90mm (others on request)

• Storage Temperature
• -40C to +100C

• Tensile Strength
• High Mechanical Strength

• Usage & Applications
• Electrical, Power Plant, Oil & Gas, Petrochemical, Industrial Installations

• Voltage
• Other, Upto 1000V

• Weight
• Varies as per size

• Application
• Other, Cable connections, power distribution, electrical panels, industrial machinery

• Armored Material
• Suitable for armoured and unarmoured cables

• Cable Type
• Suitable for Round Unarmored/Armored Cable

• Color
• Silver

• Conductor Material
• Other, Copper (Used for cabling)

• Conductor Shape
• Other, Round (used in compatible cables)

• Conductor Type
• Other, Stranded/Solid (in compatible cables)

• Connector Color
• Silver

• Core Material
• Copper/Aluminium (in compatible cables)

• Core Number
• Single or Multi-core (based on cable type)

• Diameter
• Cable diameter clamping range: 6mm-70mm

• Dielectiric Strength
• High, based on insulation

• Dimension (L*W*H)
• Depending on size; custom available

• Features
• Weatherproof, corrosion resistant, high mechanical strength, flame retardant, reusable

• Install Type
• Panel mount, outdoor/indoor

• Insulation
• PVC/Rubber for cable, none for gland

• Insulation Material
• Other, PVC or Rubber based

• Jacket Color
• Other, Metallic silver

• Jacket Material
• Other, Nickel-plated brass

• Length
• Customizable as per cable size

• Locking Type
• Threaded with locking nut and washer

• Material
• Brass (nickel-plated)

• Number of Conductor
• Depends on cable; gland suitable for single or multi-core cables

• Operating Temperature
• -20C to 120C

• Product Type
• Single Compression Cable Gland Socket

• Rated Temperature
• Up to 120C

• Size
• Available in sizes from 12mm to 63mm

• Storage Temperature
• -10C to 60C

• Tensile Strength
• High for mechanical cable retention

• Usage & Applications
• Power, Control, Instrumentation, Data Cables

• Voltage
• Other, Up to 1000V

• Weight
• Varies by size (approx. 80g to 600g)
